L3Harris AN/PVS-31A Binocular Night Vision Device (BNVD)

Black L3Harris AN/PVS-31A dual-tube night vision goggle with mount, three-quarter view

Dual-tube white phosphor goggleNight Vision

The AN/PVS-31A BNVD is a Gen III dual-tube white phosphor night vision goggle with manual gain and focus, and pods that rotate independently for stowage or monocular use. It turns off automatically when stowed and mounts to fielded dovetail helmet mounts.

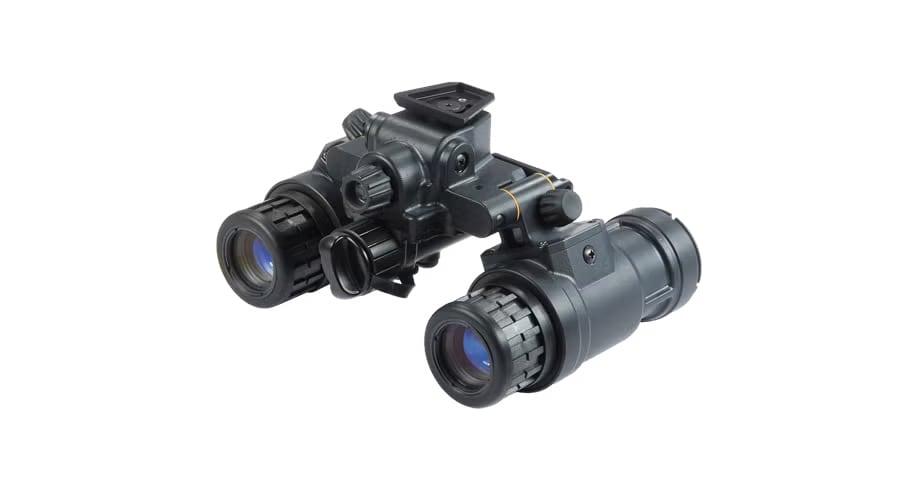

  • AN/PVS-31A binocular night vision device, three-quarter front view
    01

    Situational Awareness

    L3Harris describes the BNVD as a compact, low-profile dual-tube goggle that gives better situational awareness than a single-tube goggle, designed with input from Special Operations Forces operators.

  • Operator aiming a rifle with a helmet-mounted AN/PVS-31A, stylised night image
    02

    Target Detection

    White phosphor Gen III tubes show low-light scenes in black and white with added contrast in shapes and shadows, giving the operator more visual information for assessment and target acquisition.

  • 03

    Helmet Mounted Use

    The goggle works with fielded dovetail helmet mounts, and its rotating binocular design stows low against the helmet or can be used as a single monocular.

Details

  • Weight

    < 450 g (0.99 lb) with AA lithium battery

  • Field of view

    40° ± 2° (circular)

  • Battery life

    ≥ 8 hrs on (1) AA lithium

  • Image intensifier

    MX-11769 Gen III variable gain, white phosphor

  • Waterproof

    66 ft immersion for 2 hrs

  • Dimensions

    4.7 in. L x 4.2 in. W x 3.4 in. H

  • Battery type

    (1) AA Lithium, optional 4-cell battery pack

  • Objective focus

    18 in. (45 cm ±3 cm) to infinity

  • Eyepiece diopter

    -0.5 ±0.1 (factory setting), adjustable from +2.0 to -2.0 with optional diopter lenses

  • Tube performance

    1600 FOM to greater than 2376 FOM, auto-gated

  • Mount

    Currently fielded dovetail helmet mounts

  • Manufacturer

    L3Harris

  • Category

    Night Vision

  • Status

    Fielded

  • Missions

    Night Operations

  • Source

    Manufacturer page
