Military Systems Group MK93 Machine Gun Mount (M36-001)

Rendering of a tan Military Systems Group MK93 machine gun mount with cradle and quick release pins

Heavy weapon turret mountVehicles & Mounts

The MK93 is the standard heavy machine gun and automatic grenade launcher mount used by the US military and NATO. It is a dual-use mount for the M2HB/M3 .50 caliber machine gun and the MK19 Mod 3 40 mm grenade launcher, and fits the socket on a vehicle turret A-frame through a bearing sleeve.

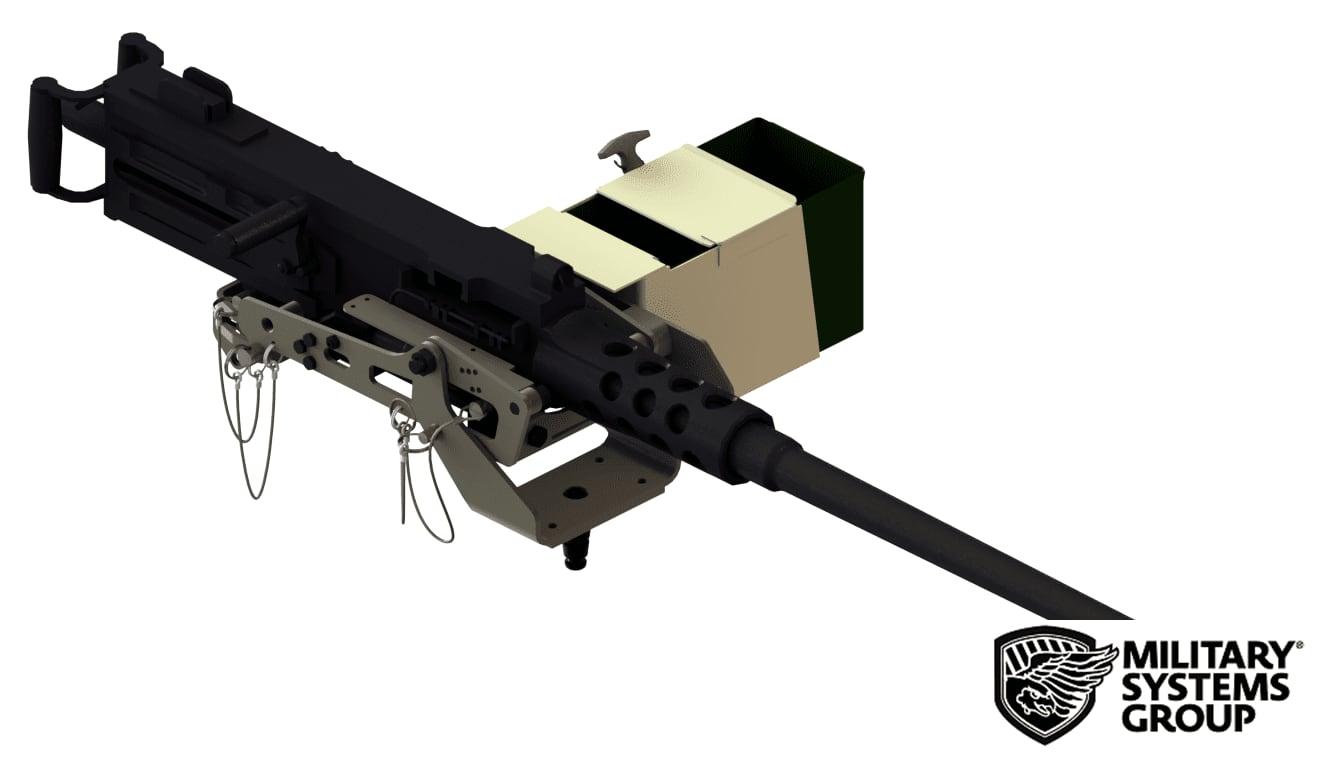

  • MK93 mount carrying an M2 .50 cal machine gun and ammo can
    01

    Heavy Weapon Mounting

    MSG describes the MK93 as the standard heavy machine gun or automatic grenade launcher mount used throughout the US Military and NATO. It is dual-use, supporting both the M2HB/M3 .50 cal machine gun and the MK19 MOD3 40mm automatic grenade launcher.

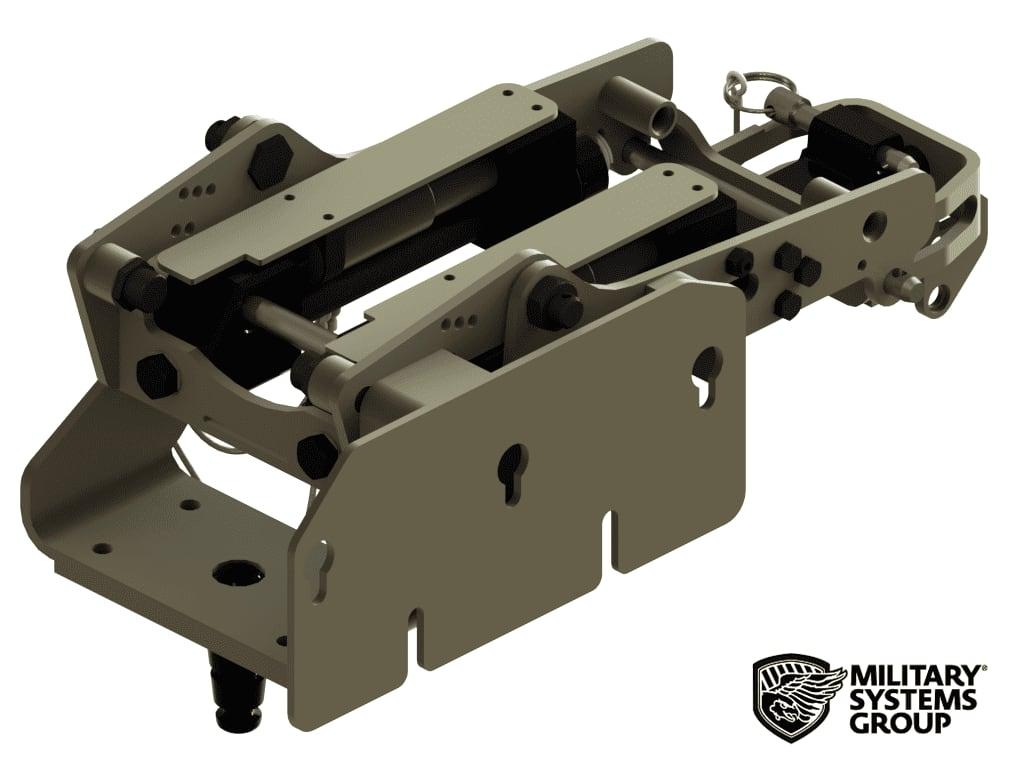

  • MK93 machine gun mount on its own, three-quarter view
    02

    Turret Integration

    The mount is used with the Universal Pintle Adapter, a Traverse and Elevation mechanism and a bearing sleeve that attaches to the socket on the vehicle turret A-frame.

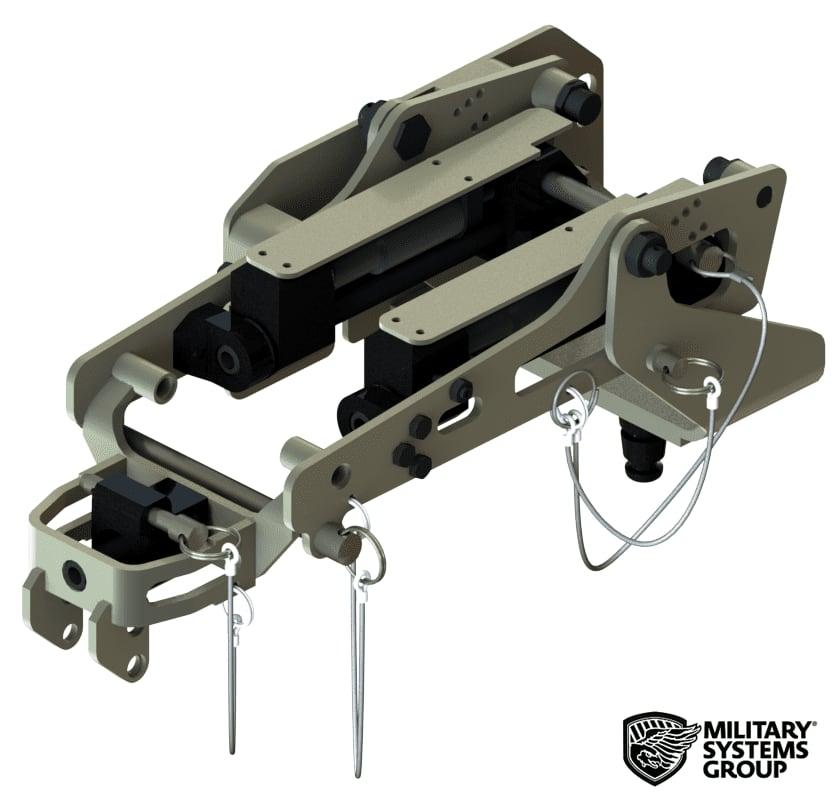

  • MK93 machine gun mount, alternate angle
    03

    Ammunition Feed

    The MK93 carries either a 100/200 round .50 cal ammo can holder or a 40mm ammo can holder alongside the weapon.

Details

  • Part number

    M36-001

  • Weapons

    M2HB/M3 (.50 cal), MK19 Mod 3 (40 mm)

  • Ammunition

    100/200 rd .50 cal or 40 mm ammo can holder

  • Used with

    Universal Pintle Adapter, T&E mechanism, bearing sleeve

  • Service use

    Standard heavy machine gun / automatic grenade launcher mount throughout the US Military and NATO

  • Manufacturer

    Military Systems Group

  • Category

    Vehicles & Mounts

  • Status

    Fielded

  • Missions

    Fire SupportMobility

  • Source

    Manufacturer page

Gallery

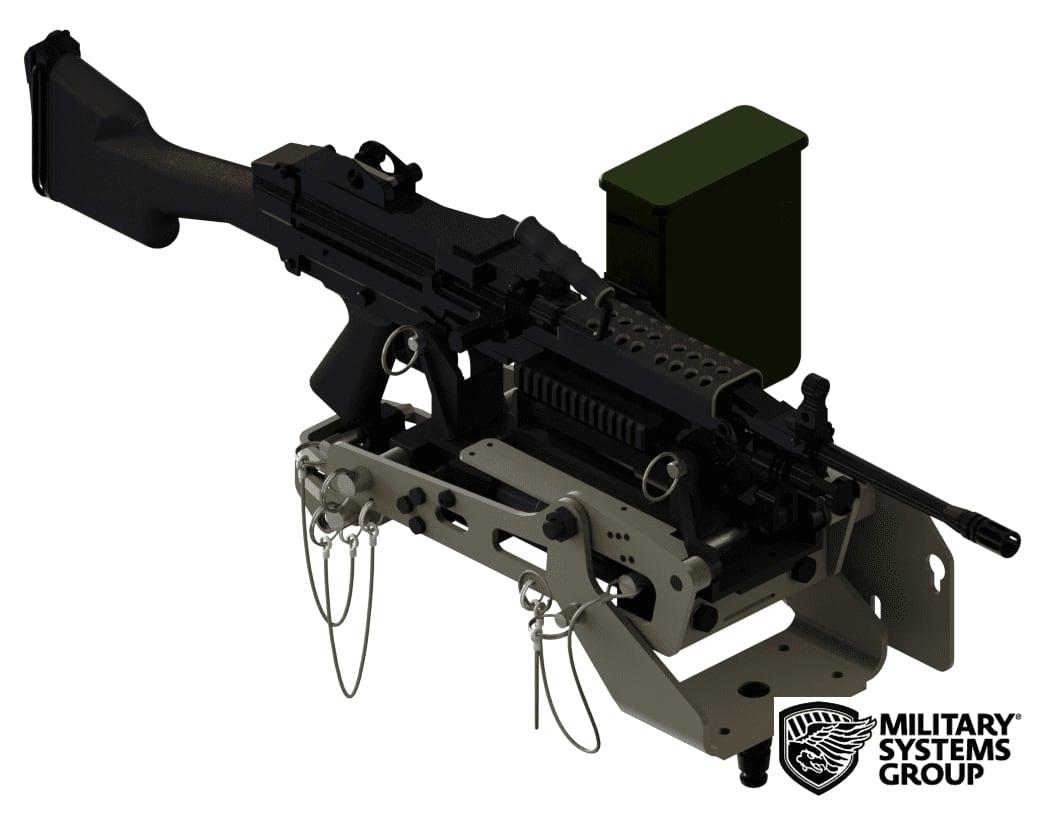

  • MK93 mount fitted with an M249 machine gun through the M35-800 adapter kit
